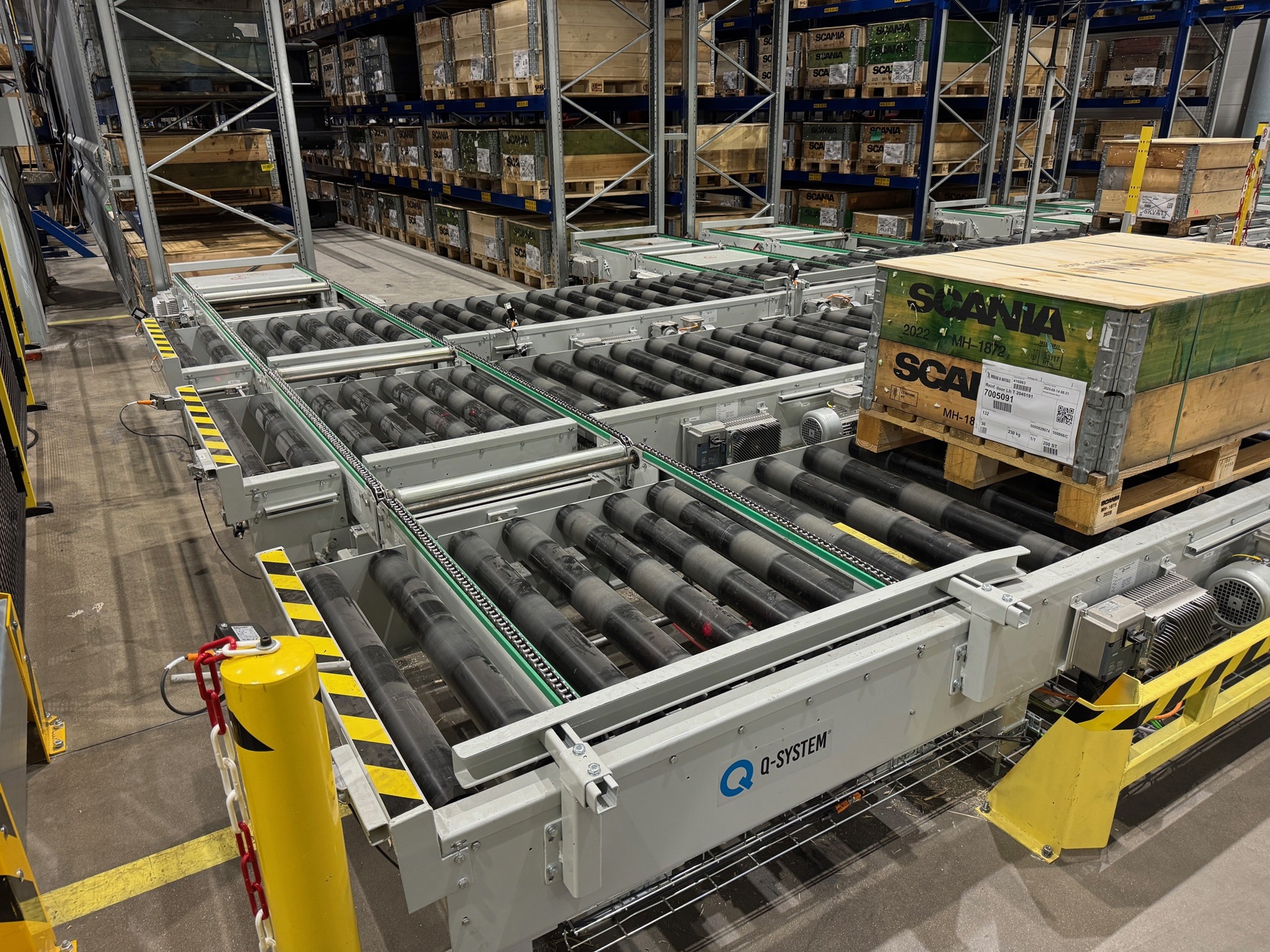

Cross transfer unit pallet moving
  1. Conveyor systems /
  2. Cross transfer unit

Cross transfer units for 90° and 180° load transfer

Q-System delivers cross transfer units for controlled 90° and 180° transfer of pallets, unit loads and products in industrial material handling systems. Designed for compact routing and efficient line-to-line movement, they are used where loads need to be transferred sideways between conveyor paths without manual handling.

Cross transfer units for efficient sideways movement

Cross transfer units are used in conveyor systems where loads need to move sideways between conveyor lines rather than only forward through the transport path.

They provide controlled lateral transfer and are especially relevant in layouts where products or pallets must be transferred between parallel conveyor sections as part of the overall material flow.

Cross transfer units are typically used:

  • Loads must move sideways between conveyor lines
  • The layout requires compact routing
  • The system includes multiple parallel transport paths
  • Efficient line-to-line transfer is needed without manual handling

This makes cross transfer units a valuable solution in conveyor systems where short-distance lateral movement must be handled in a stable and controlled way.

Move loads between parallel conveyor lines

A cross transfer unit adds transverse movement to the conveyor system. Instead of only moving products forward of changing their orientation, the unit makes it possible to transfer the load between defined conveyor positions:

This is especially useful in applications where:

  • Loads must move between parallel conveyor lanes
  • Products need to be distrtibuted across multiple transport paths
  • Conveyor flow must be redirected within a compact footprint
  • The layout requires side transfer without a longer travel path

By adding controlled sideways transfer, cross transfer units help improve both routing flexibility and layout efficiency.

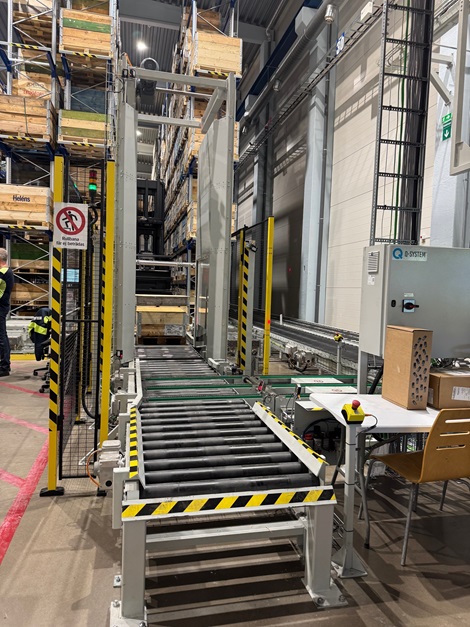

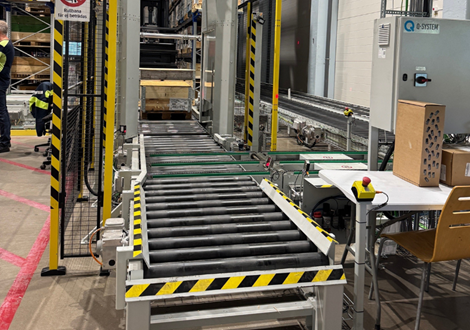

Cross transfer unit systems

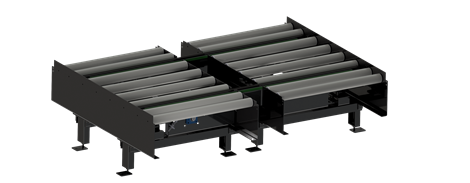

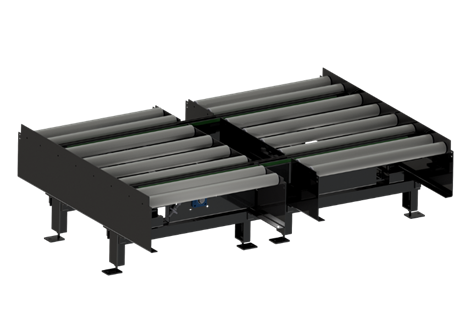

Vinkeloverføring

Designed for 90° and 180° transfer applications

Cross transfer units are particularly relevant in layouts where loads need to be transferred through defined angular movement rather than longer travel across the system.

This makes them highly suitable for:

  • 90° transfer between conveyor lines
  • 180° return flow or reverse transfer logic
  • Compact routing in pallet handling systems
  • Integration into heavy-duty conveyor layouts

Q-System cross transfer units are designed for this type of routing logic, where the objective is to move the load efficiently between defined positions without introducing unnecessary system complexity.

Sigle and double cross transfer units

Cross transfer units can be configured differently depending on the system layout and the required transfer logic.

Depending on the application, solutions may include:

  • Single cross transfer units
  • Double cross transfer units
  • Configurations adapted to different roller widths and section layouts
  • Transfer logic matched to surrounding conveyor modules

This makes the product flexible enough to support both simpler routing functions and more integrated line-to-line transfer in larger conveyor systems.

Technical design options

Cross transfer units are designed according to the load, the transfer logic and the surrounding conveyor system.

Typical design considerations include:

  • Load type and dimensions
  • Pallet size and support requirements
  • 90° and 180° transfer logic
  • Roller width and conveyor section geometry
  • Throughput and cycle requirements
  • Drive configuration
  • Integration with controls and safety systems

Depending on the application, the cross transfer unit may be designed to support:

  • Lateral transfer between conveyor lines
  • Integration into heavy-duty conveyor layouts
  • Repeatable load movement in industrial operating environemnts
  • Compact routing where floor space is limited

This allows the unit to be dimensioned around the actual transport task rather than treated as a generic routing modules.

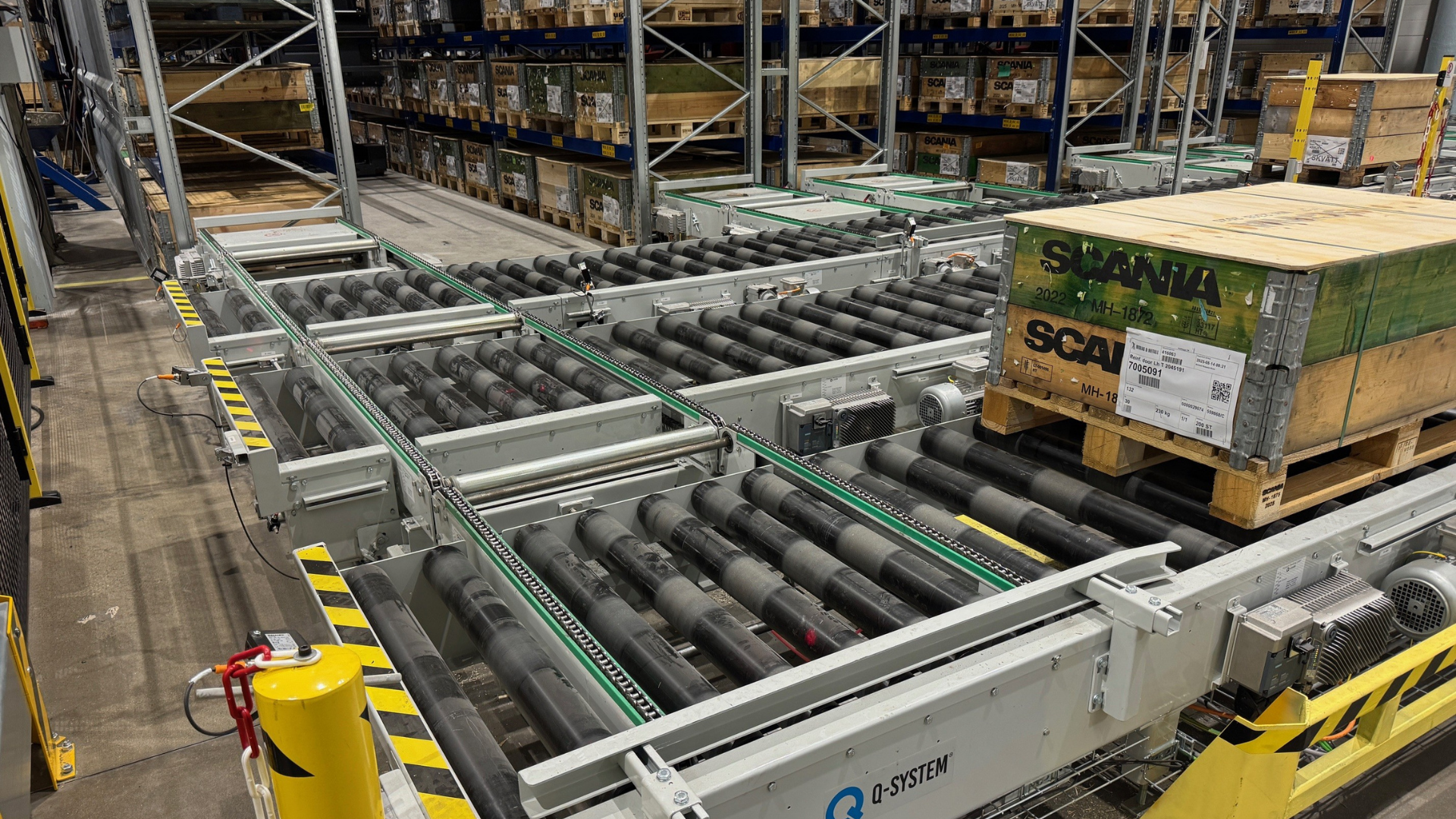

Cross transfer unit pallet moving

Integrated with broader conveyor systems

Cross transfer units are rarely used as isolated modules. In most applications, they are integrated into a larger conveyor system where several transport principles work together across linear, lateral and vertical flow.

They are commonly integrated with:

  • Roller conveyors
  • Chain conveyors
  • Belt conveyors
  • Transfer cars
  • AMR/AGV's
  • Lifts
  • Turntables

This makes cross transfer units highly relevant in systems where loads need to move not only through the line, but also sideways between lanes, zones and transport paths. In many layouts, the cross transfer unit acts as a compact transfer points that helps connect the wider conveyor system.

Designed around the full system layout

The right cross transfer unit depends on more than the sideways movement alone. It also depends on how the surrounding system is designed and how the material flow should function in practice.

At Q-System, cross transfer units are typically designed based on:

  • Conveyor layout and routing logic
  • Load type and support requirements
  • Transfer angle and flow direction
  • Required throughput
  • Integration with surrounding equipment
  • Safety and guarding requirements
  • Automation and control logic

This ensures that the cross transfer unit supports the full material handling system rather than acting as a standalone transfer module.
